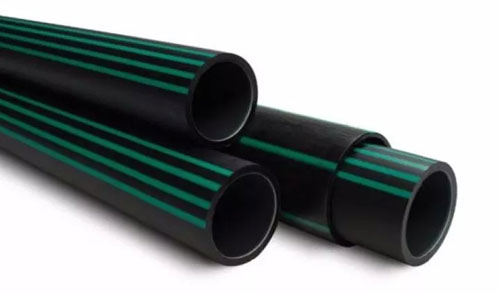

UPP double-layer composite pipe is EN14125 standard pipe, can be used for self-priming and pressure system. Particularly suitable for gas stations, terminals and airports refueling lines, oil and gas recovery pipelines and ventilation lines.
Pure colorless pigmented EVOH liner
The EVOH pigmented liner eliminates the possibility of adding colorants to lower resin performance and provides outstanding barrier to hydrocarbon and hydrocarbon permeation. This provides an enhanced barrier to impermeability and enhances the level of protection with several auxiliary upgrades.

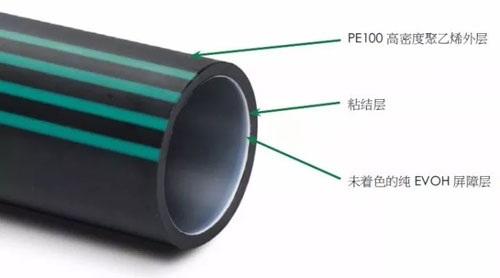

Three-tier structure
Increase traffic design
The strength properties of the EVOH pigmented liner in combination with the PE100 allow the thickness of the HDPE outer structural layer to be reduced while maintaining tight seepage resistance and rated pressure under EN14125. As a result, a greater inner diameter is achieved as well as the possibility of increasing the flow rate and reducing the pressure loss.
T1 class temperature rating
EN14125 standard UPP tubing operates from -40 ° C to 50 ° C with zero penetration. Burst pressure over 40 atmospheres, with a very high level of safety.

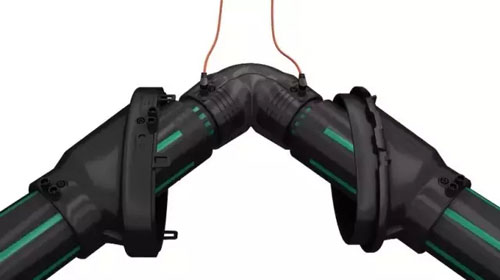

Fused welding installation
Innovative fusion welding process, installation super easy.

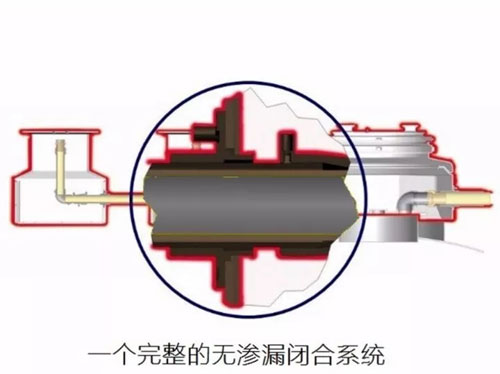

Ta uses fittings and inlet seals to weld the piping together to form a seamless, direct-buried system from the manhole of the tank to the tank bottom of the tanker. Rugged, complete 360 ° leak tight.
