Manual notch sample-making machine

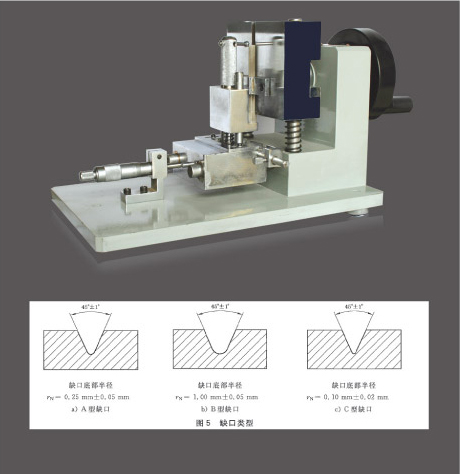

QZS Manual notch sample-making machine

Manual notch sample-making machine Use:

It is a sample-making machine that is used for making notch sample, which is employed in doing non-metal materials impact toughness test for the izod and charpy impact testing machines.

Manual notch sample-making machine Main technical parameters:

Cutter range: 24mm
Feed speed: Max speed 4mm/min
Test pieces types: type 1,type 2,type 3,type 4
Notch types: type A,type B,type C
Cutter parameters: Type A 45°±30' r=0.25±0.025mm
Type B 45°±30' r=1.0±0.025mm
Type C Thickness1:2±0.1mm
Thickness2:0.8±0.1mm r≤0.1mm
Feed quantity: 0.1mm/travel
Feed travel: 10mm
